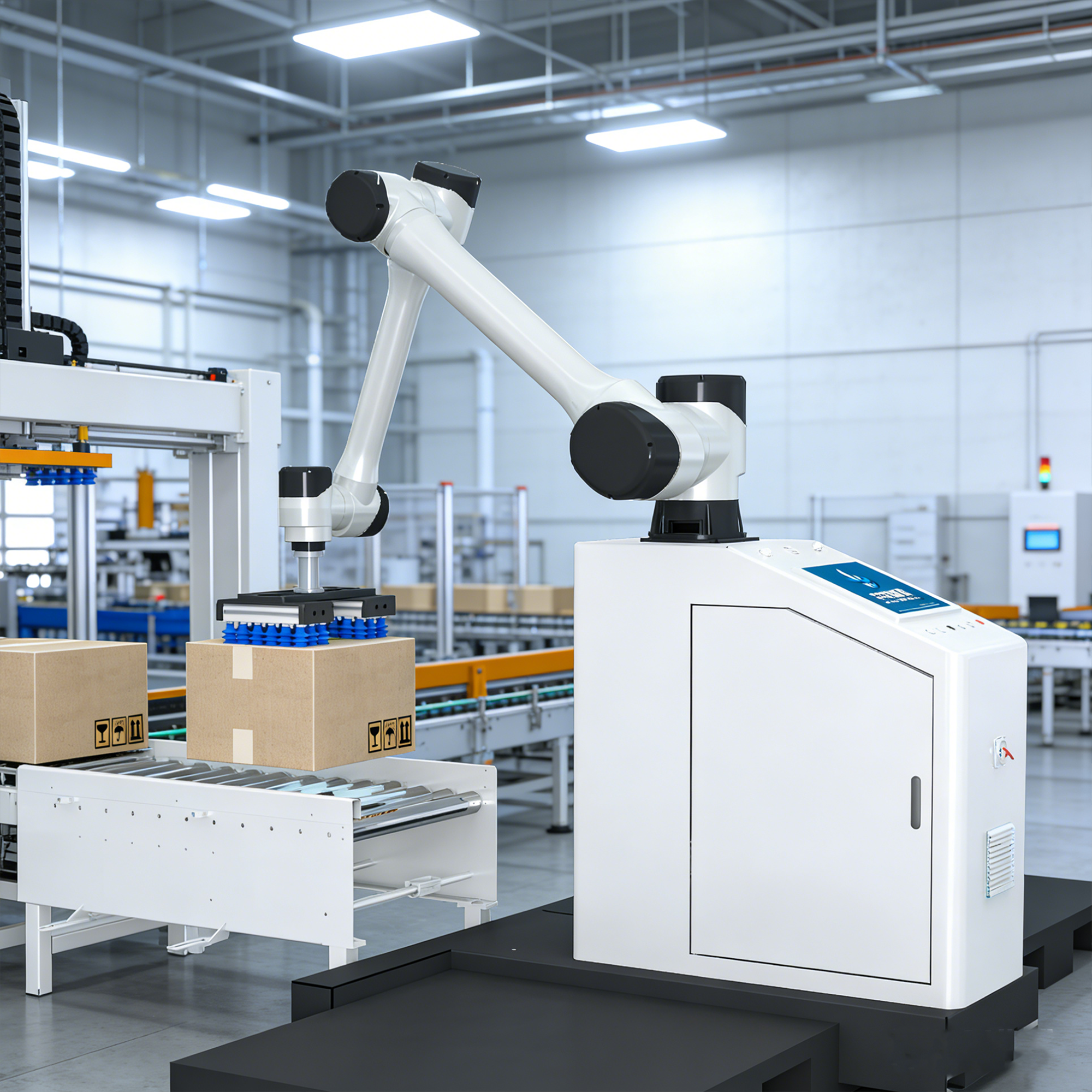

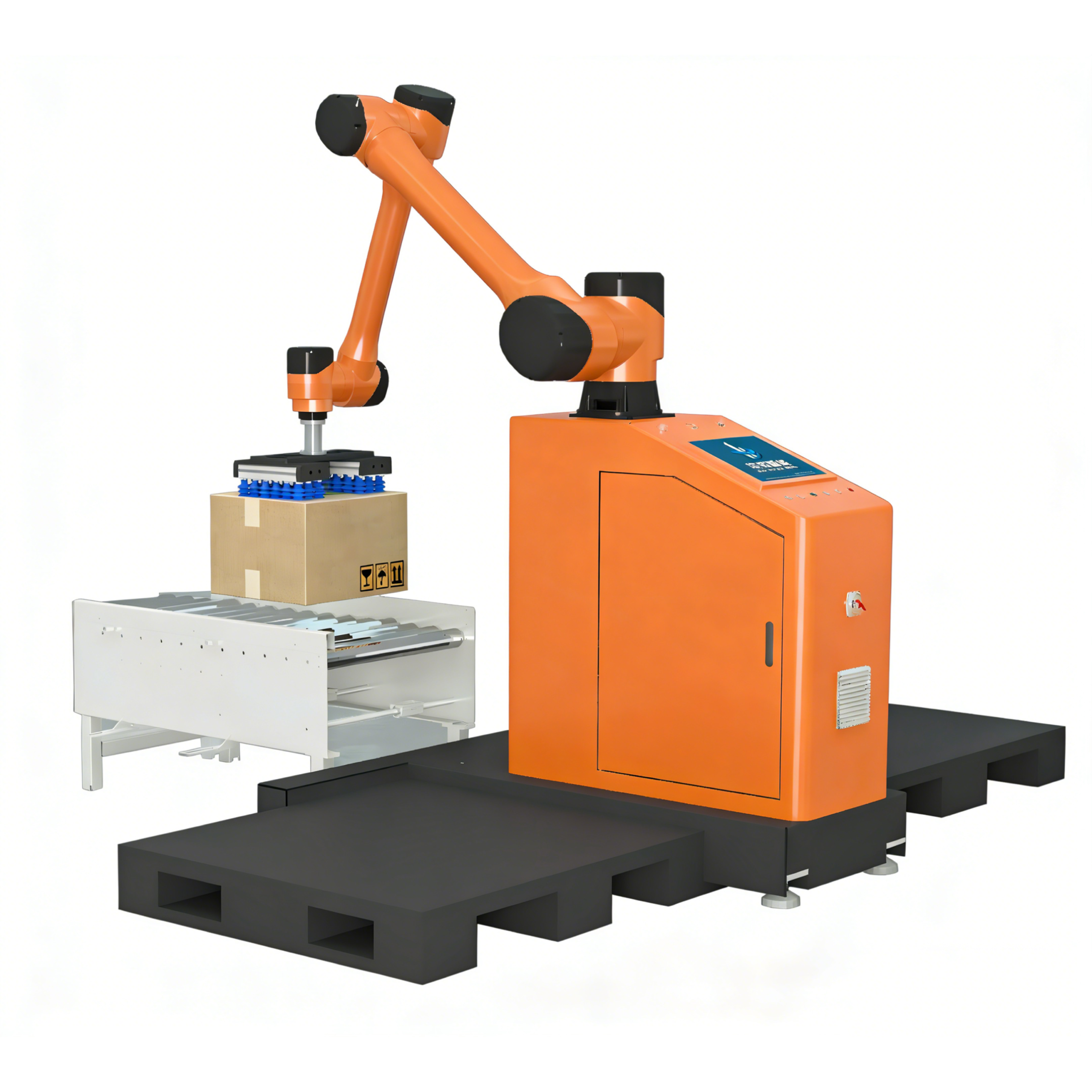

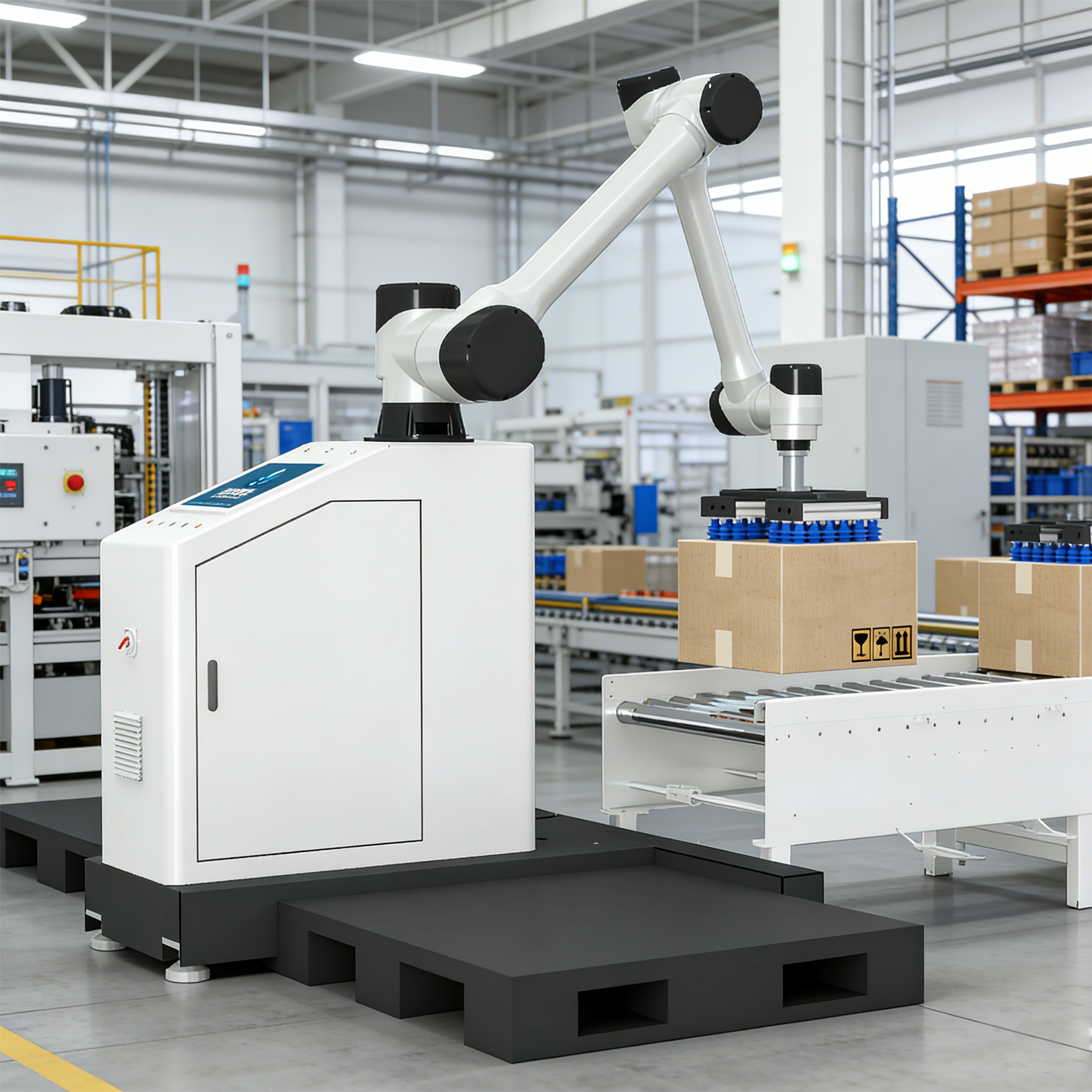

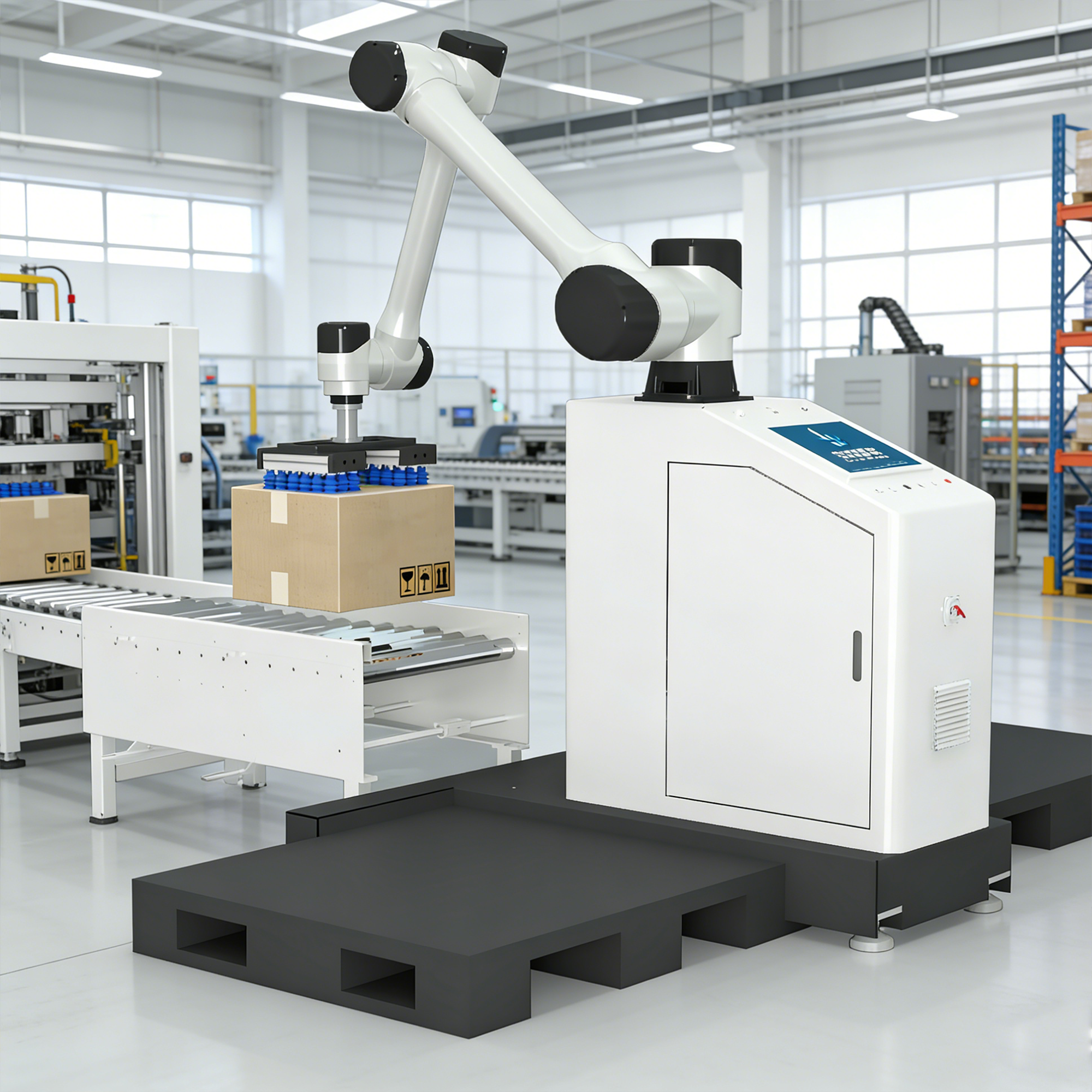

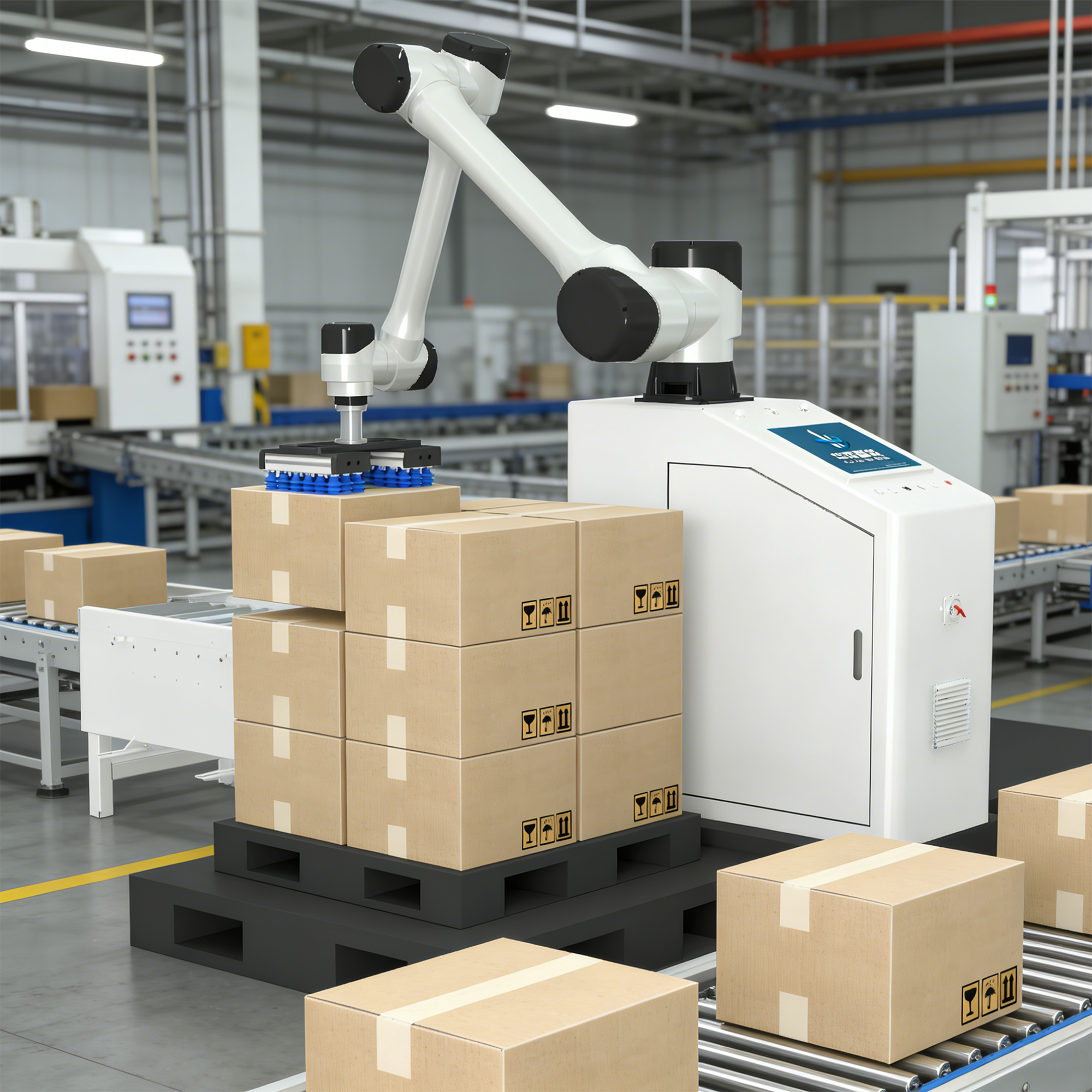

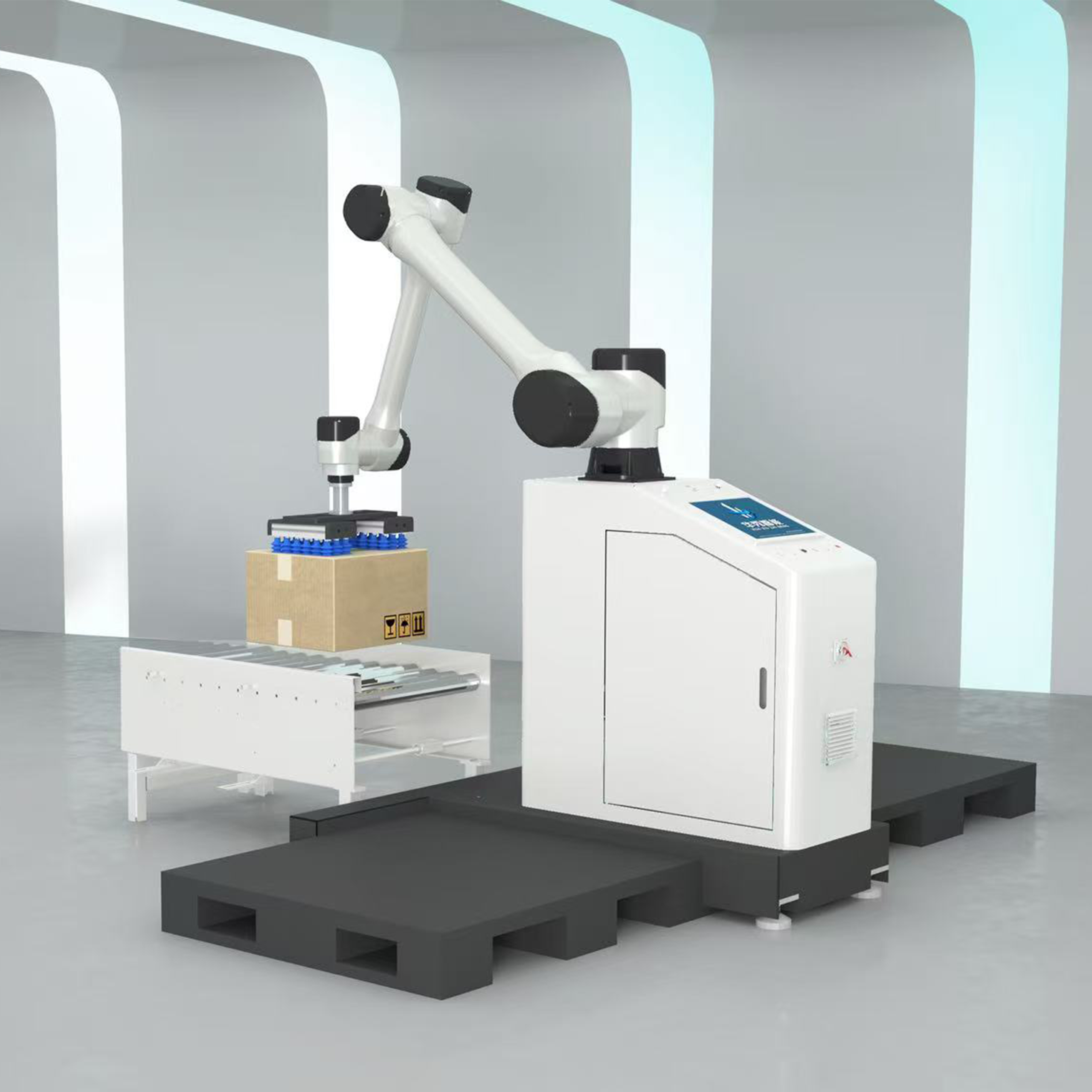

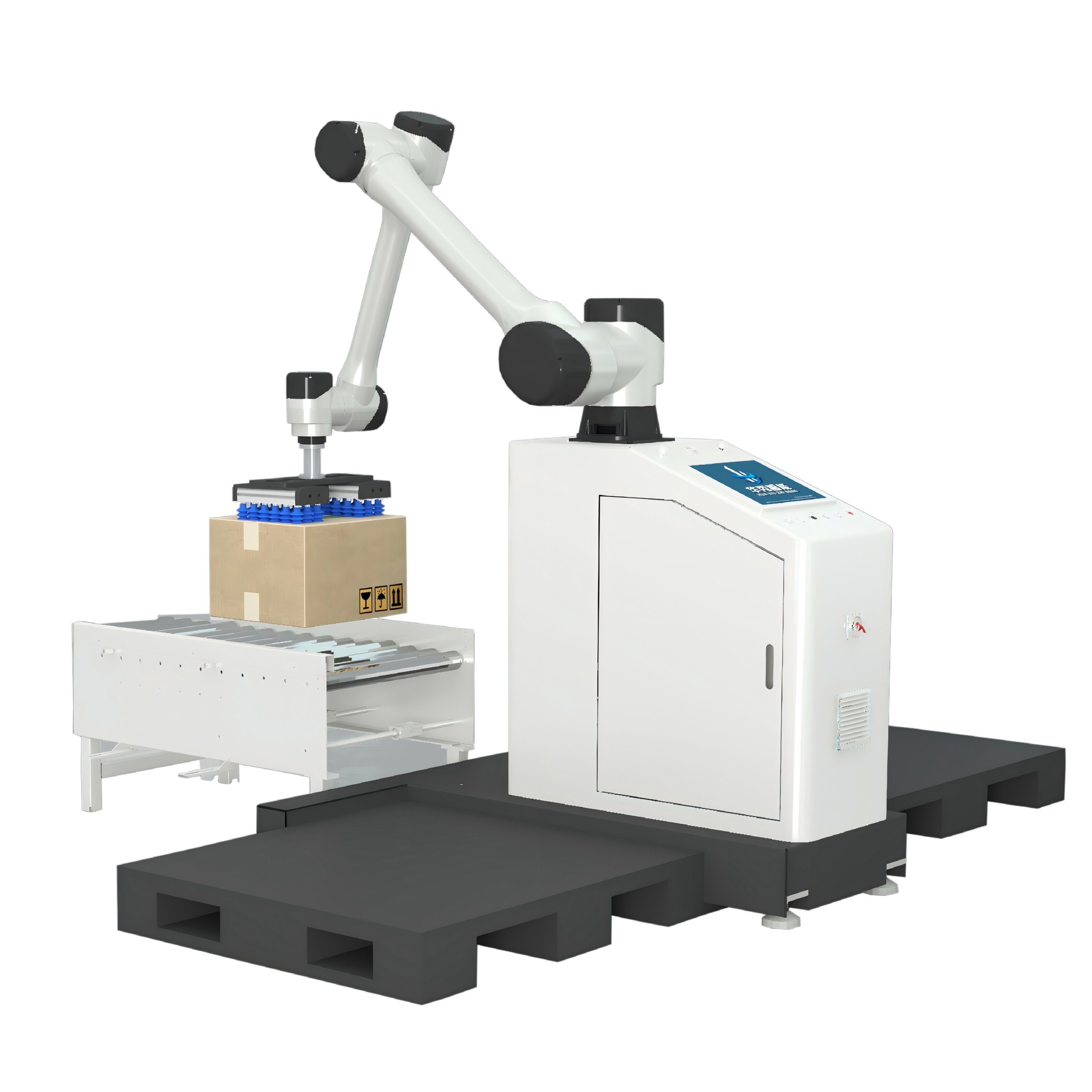

- The MD—630 Portable Collaborative Robot Palletizer is an intelligent, flexible, and highly integrated palletizing solution designed to improve production efficiency while reducing labor intensity and operating costs. Featuring a self-developed control system and program-free operation, the MD—630 allows operators to quickly generate palletizing patterns through a visual touchscreen interface without any programming knowledge.With its compact structure, high payload capacity, and flexible deployment capability, the MD—630 can operate independently or integrate with automatic pallet dispensers and pallet conveyor systems to create a fully automated palletizing line. It is widely used in industries such as food & beverage, pharmaceuticals, daily necessities, cosmetics, metal products, and carton packaging.
| Item | Parameters |
|---|---|
| Model | MD—630 |
| Type | Portable Collaborative Robot Palletizer |
| Payload | 30 kg (customizable) |
| Palletizing Speed | 8–12 cases/min |
| Working Radius | 1800 mm |
| Vertical Stroke | H1=1800 mm / H2=2300 mm |
| Palletizing Height | 1800–2300 mm |
| Applicable Pallet Size | 1200 × 1200 × 140 mm |
| Repeat Positioning Accuracy | ±0.1 mm |
| Rated Voltage | Single-phase 220V / 50Hz |
| Power Rating | 3300 W |
| Protection Grade | IP54 |
| Machine Weight | Approx. 475 kg |
| Operating Temperature | -15°C to 55°C |
| Compatible Surfaces | Cartons, smooth surfaces, metal surfaces |
